Strands – Alaska Ploglampa LED

Beskrivning

Strands Alaska ploglampa LED

[youtube https://www.youtube.com/watch?v=wyzHLTGrgTs?version=3&rel=1&showsearch=0&showinfo=1&iv_load_policy=1&fs=1&hl=sv-SE&autohide=2&wmode=transparent&w=1170&h=659]

• • Color housing-Black
  • Unit-PCS
  • Type of Lamp-LED
  • PCS LED´s-5
  • Voltage (V DC)9-32V DC
  • Consumption (w) 12VPosition light: 4,5W, Indicator: 5W, High beam: 57W, Low beam: 17W, Heating lens: 36W
  • Consumption (w) 24VPosition light: 5W, Indicator: 6W, High beam: 55,5W, Low beam: 18,5W, Heating lens: 31W
  • Functions-High beam, low beam, position light, indicator, heated lens
  • Theoretical lumen-3000 (high beam), 2400 (low beam)
  • Actual lumen-1380 (high beam) 1008 (low beam)
  • 1 LUX @ m80 (low beam) 160 (high beam)
  • Kelvin-6000
  • IP-class-67/69K
  • Color lens-Clear
  • Color LED´s-White
  • Beam pattern-Combo high beam, combo low beam
• • Position light-Yes
  • Connection-DT-6
  • Cable length (mm)500
  • Material bracket-Stainless steel
  • Material housing/chassi-Aluminium
  • Material lens-Glass
  • Length (mm)200,4
  • Depth (mm)85,5
  • Height (mm)142,4
  • Height including bracket (mm)177,8
  • Operating temperature-30°C – +65°C
  • ADR-approved-No
  • E-approved-Yes
  • According to regulationECE R6, R7, R112
  • Reference number-17,5
  • EMC-ECE R10

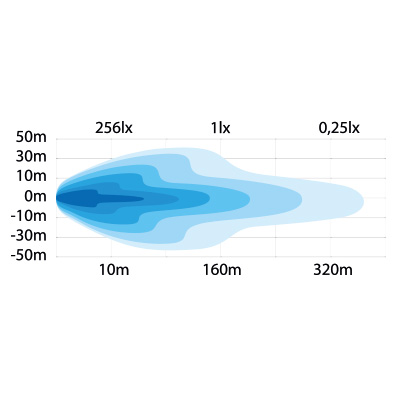

Luxameter –

• • 1 LUX at (m) for 1 unit-160
  • 1 LUX at (m) for 2 units-226
  • 1 LUX at (m) for 3 units-277
  • 1 LUX at (m) for 4 units-320
  • 1 LUX at (m) for 5 units-358
• • 1 LUX at (m) for 6 units-392
  • 1 LUX at (m) for 7 units-423
  • 1 LUX at (m) for 8 units-453
  • 1 LUX at (m) for 9 units-480
  • 1 LUX at (m) for 10 units-506
